Personal Industrial Rugged Tablets PC RFID Integrated Reader IP65 Dust Proof
The Specification of KT80 RFID Integrated reader
| KT80 Rugged Tablet with Barcode Scanner |
| OS | Android 5.1 |
| CORE |
| Core | CPU | Eight-core 1.3GHz
ARM® Cortex-A53 |
| WWLAN | FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8 |
| Flash ROM | 16GB |
| RAM | 2GB DDR3 |
| General Configuration |
| Display | 8 inch IPS 1024*768 |
| touch screen | Multi-point touch capacitive screen |
| GPS | Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) |
| WiFi | 802.11 a/b/g/n |
| Protection class | IP65 |
| Drop resistance level | 1.5m |
| Camera | Rear camera | 13MP Camera |
| Front camera | 5MP Camera |
| Keypad | Front /Side | 12keys |
| |
| Interface | Micro-USB connector | USB2.0 OTG |
| SIM card slot | 2 Micro SIM slot |
| TF card slot | *2 |
| charging | Micro USB + Magnetic charging |
| Audio Jack | *2 |
| External Interface | USB HOST | *1 |
| RS232 | * 2 |
| |
| Battery | Type | rechargeable Li-ion battery 6800mAh*2 |
| Standby Time | 600hours |
| Calls Time | Up to 6hours |
| Charging Time | 8hours (magnetic charging) |
| Physical Characteristics | Dimension | 270*176*20mm |
| Weight | >800g with battery (according config) |
| |
| Operating temperature | -20°C to 50°C / -4°F to 122°F |
| Storage temperature | -30°C to 70°C / -22°F to 158°F |
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% |
| Electrostatic discharge | ± 15 kV air discharge, ± 8 kV contact discharge |
| EMC regulation | CE |
| OPTIONS |
| Barcode scanner | option | HoneyWell 1D&2D barcode scanner |
| NFC | Yes | 13.56MHz NFC |
| IRIS recognition | option | The recognition distance is less than 20cm |
| PSAM | option | ISO7816 (SIM card interfance) |
| Infrared meter reading | option | IEC62056-21(IEC1107) communication protocol |
| Magnetic bracket | option | Apply to car or desktop fixation |
| Wrist strap | option | 360 degree rotation |
| Stylus | option | Capacitance touch pen |
| RFID | option 1 | LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) |
| option 3 | HF RFID(13.56MHz ISO 14443A/B ISO 15693) |
| option 4 | UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. |
| Smart card reader | option | contact SMART card ISO7816 compliant |
| Fingerprint | option 1 | crossmatch TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ) |
| option2 | Other custom fingerprint modules |
| | MRZ |
| | Other customers custom module. |
Shipping
| Delivery time : Samples 5-8 working days after order confirmation. Bulk order depend on the Quantity |

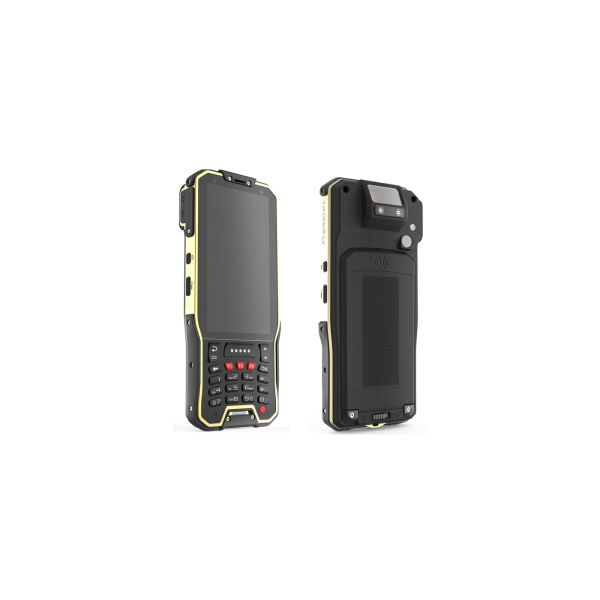

Relative Product KT40 handheld 2D barcode Scanner
FAQ
MOQ: 1pc
- How long is the delivery time?
Different delivery time according to quantity.
1~100 pcs, about 2 weeks.
100~500 pcs, 2-4 weeks.
More than 500 pcs, 3-4 weeks
- Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your testing.
- Are you a manufacturer of Handheld PDA?
Yes, we are a chinese listed manufacturer of R&D and producing industrial PDA Terminal hardware software solutions with over 8 years' OEM/ODM experience, cooperate with Foxconn as well.
- What kind of services do you support?
1.Free SDK and technical support before and after sale.
2 Provide ODM/OEM customization services according to your needs.
3.Support 13months Warranty for your devices and other parts. and 6 months for the batteries. Lower fee for extentive warranty as well.
That's quiet a serious question. Our products are sold worldwide in South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get great feedback from our customers.
